SHEV Shaped EnvVCA Dual Envelope Waveshaper VCA Eurorack Synth Module, Black

Name: SHEV Shaped EnvVCA Dual Envelope Waveshaper VCA Eurorack Synth Module, Black
Brand: 4MS
SKU: 4MSCDUALSENVVCA
Price: 239.25 USD
Availability: InStock

-25% $239.25

List Prices: ~~$319.00~~

Color: Black

We Like Deals!

All 4MS

All Keyboards

All Synthesizers & Synth Modules

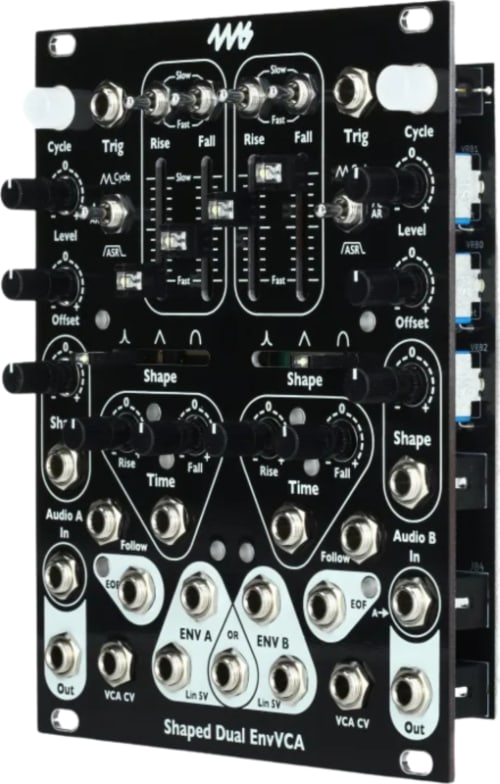

The Shaped Dual EnvVCA is a two-channel analog envelope generator with waveshapers and a stereo linear VCA. Unlike conventional analog envelope modules, the waveform of each envelope can be controlled with a slider or CV without changing the envelope timing. With a wide time range from an hour to 2.5kHz, and a plethora of CV inputs and attenuverters, it can be used as an LFO, audio-rate oscillator, slew limiter, waveshaper, ASR/ADSR/complex EG, independent audio/CV VCA, envelope follower, sidechain processor, and general utility module. Each channel has dedicated linear outputs plus attenuverters and offset controls for the variable waveshape outputs, making it an ideal modulation source and stereo VCA.

Features

Versatile linear, exponential, and logarithmic envelope generator/LFO
Low-noise, low-distortion, DC-coupled linear VCAs
100% analog
Shape Slider, CV Jack and Attenuverters for fading between Exponential, Linear and Logarithmic envelope shapes without changing the envelope timing
Sliders and Range switches control Rise and Fall times from ~2ms to > 2 min
Time CV jack extends time range: ~400µs (2.5kHz) to ~1 hour
Independent attenuverters for Rise and Fall time
Blue/Red LEDs indicate strength and polarity
Cycle buttons for looping envelopes (LFO)
Trigger input jack and switch for toggling between AR, ASR, and Cycle modes of triggering
EOR/F (End of Rise/Fall) gate outputs can be used to chain and sequence events
Env Level and Offset knobs scale and shift Env Out without changing VCA volume
Audio In and Out jacks for passing audio or CV through the VCA
VCA CV inputs to use VCAs independently from the envelopes
VCA gain internally connected to envelope output when VCA CV jack is left unpatched
Follow input jacks allow for slew limiting, ADSRs, and exotic filtering effects

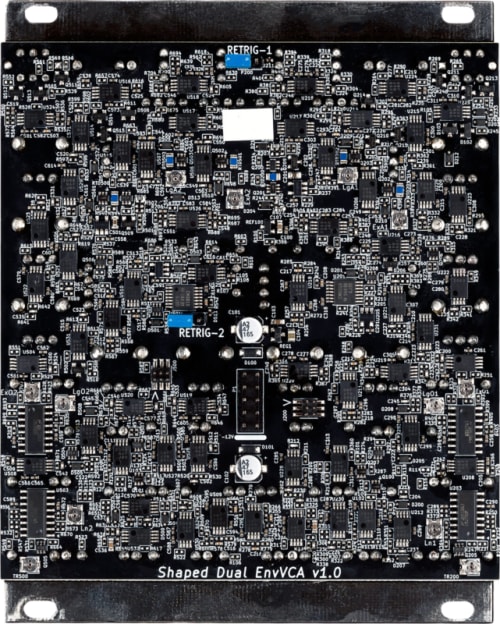

Re-trig jumpers allow for re-triggering during rise phase
Depth: 0.95"
Power usage: +12V, 255mA, -12V: 230mA
