Sampler Eurorack Synth Module, Black

Features

• Hundreds of samples included on microSD card
• Extremely quiet, low noise and low jitter design
• Stereo or Mono output

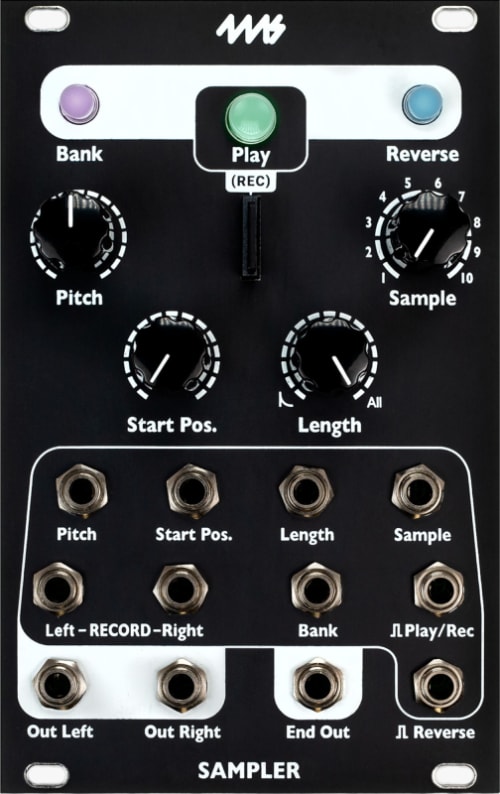

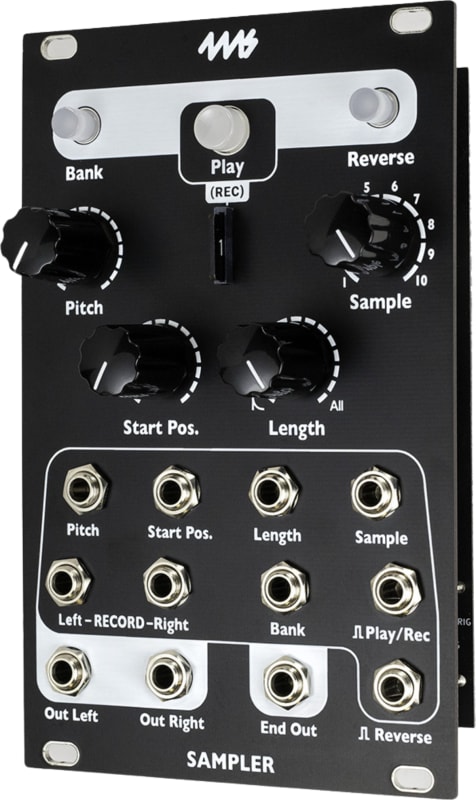

• Play button/trigger jack: Tapping the button or receiving a trigger starts/re-starts the sample
• Sample CV/knob: select which sample within the channel's bank
• Pitch CV and Pitch knob: playback pitch (-10 to +4 octave range)
• Start Pos CV/knob: position in the sample to begin playback (loop start point)
• Length CV/knob: playback time (loop end point)
• Length knob at max: entire file is played
• Length knob 50%-99%: 200ms - 5s of the sample is played (beginning at the Start Position)
• Length knob <50%: Percussive decay envelope is applied to the playback (attack-only envelope if playing Reverse)
• Length <1%: Tiny grains are played (can be used to sweep through sample file data manually)
• Reverse button/jack: toggles forward/backwards
• Bank button: selects channel's bank
• Reverse+Start Pos button/knob combo allows for setting volume of playback
• Maximum file size for playback: 4GB per file (6.7 hours per file at 44.1kHz/16b/stereo)
• microSD Card is hot-swappable when Busy light is off: no power-down required to change cards.
• Samples that are pre-loaded into memory can continue playing while card is swapped.
• Depth: 1.1"
• Power usage: +12V/145mA, -12V/41mA
