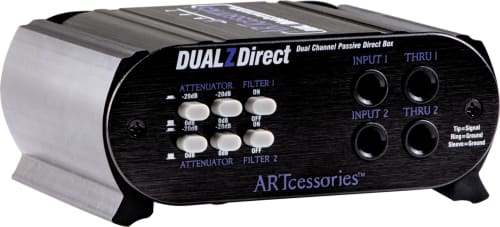

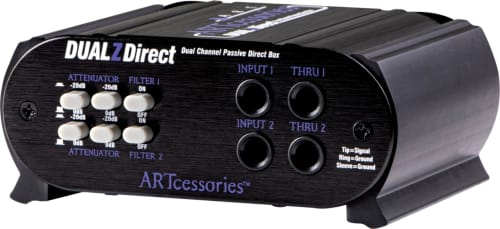

ART DualZDirect Dual Passive Direct Box
$55.99
We Like Deals!
The DualZDirect is a 2-channel passive direct box for connecting unbalanced instrument, line, or speaker signals to balanced inputs. Each input signal is sent to a transformer-isolated XLR output and a parallel Thru jack so it can simultaneously be connected to an amplifier on stage. Front panel switches engage up to 40 dB of attenuation to accommodate high-level signals, and a low-pass Bessel filter to eliminate high-frequency interference. Rear switches activate a ground lift to reduce hum, and invert the signal polarity to resolve phase issues, such as those which can occur when combining DI and mic sources. As a fully passive design, the PDB doesn’t require an external power source. Passive DIs are often a great match for powered sources such as synthesizers or guitars and basses with active preamps. Simple and durable, the DualZDirect is a compact DI in a rugged aluminum enclosure with two indpendent channels and a versatile feature set.
Features
- 2 Independent Channels
- 1/4" TRS Inputs and Thru Connectors
- Balanced XLR Outputs

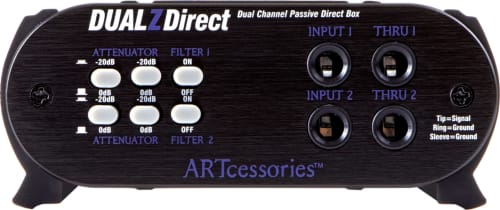

- Switchable Attenuation (-20 dB, -40 dB) per Channel

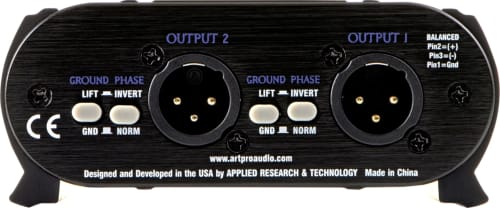

- Switchable Low-Pass Filter, Ground Lift, and Phase Invert per Channel
- Passive Design - No Power Required
