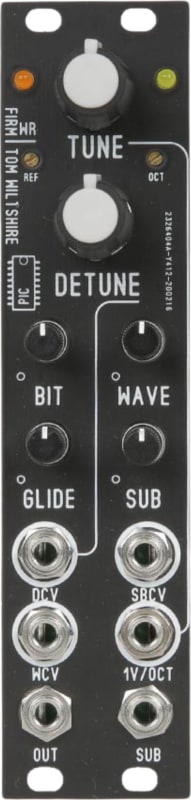

TW DCO Digital Oscillator Eurorack Synth Module
$130.00
We Like Deals!
Blue Lantern's TW DCO is a digital VCO that utilizes Tom Wiltshire's DCO PIC IC in addition to sporting a 200nf capacitor on the wavetable CV input. There's also a sub-oscillator and CV control over the Detune and Wave parameters. Additionally, the Tune knob is quantized, meaning it locks to a chromatic scale when turned.
Features
- 10 Octave note range from 8.18Hz to 8372Hz
- 16 Waves in the table
- 8 Sub Osc waves
- Bit Crush Control, from 8-bit to 1-bit. 8 bit 62.5KHz Sample Rate
- On board Glide effect parameter
- Depth: 1.26"
- Current draw: 27mA @ +12V, 25mA @ -12V
Specifications
HP Size
6HP
MPN
BLMDCO
Type
Synth Module
UPC
0000715706620932
