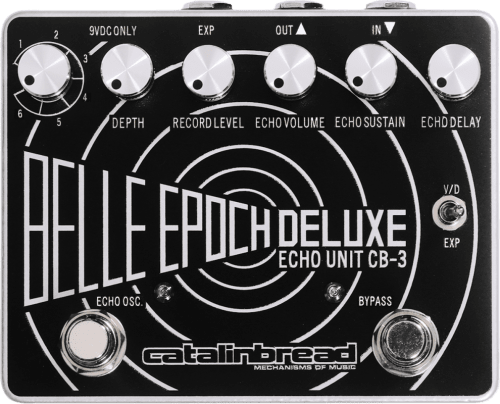

Exact EP-3 circuitry, from the 22 volt power rail, to the JFET preamp (later spec), to the mixer stage, to the high gain silicon transistor based record and playback amplifiers, to the feedback loop. All circuitry is faithfully reproduced and fine-tuned from the original EP-3 specifications. The only thing missing are the record and playback heads, with a 24-bit high-fidelity digital delay line taking the place of the tape. All-discrete, through-hole construction with orange drop 225P capacitors, carbon composition resistors, germanium diodes, and other premium parts.
Features
- Power Source: 9V DC power supply (sold separately)
- Faithful digital re-creation and physical reconstruction of the original EP-3 Tape delay units
- Discrete preamp improves your guitar tone from low-volume cleans to saturated fuzz
- Expression pedal input with topside toggle switch for pedal control of delay time, playback volume, filter sweep, or rotary speed
- Made in the USA
Specifications
Dimensions
2.4" H x 4.68" W x 3.66" D
Effects
Delay
Features
Expression Pedal
Inputs
2 x 1/4" Instrument, Expression
MPN
BELLE EPOCH DELUXE
Outputs
1 x 1/4"
Power Source
9V DC power supply (sold separately)
Power Usage
200mA
Processing Type
Digital
UPC
0000853710004758
Weight
.93 lbs
