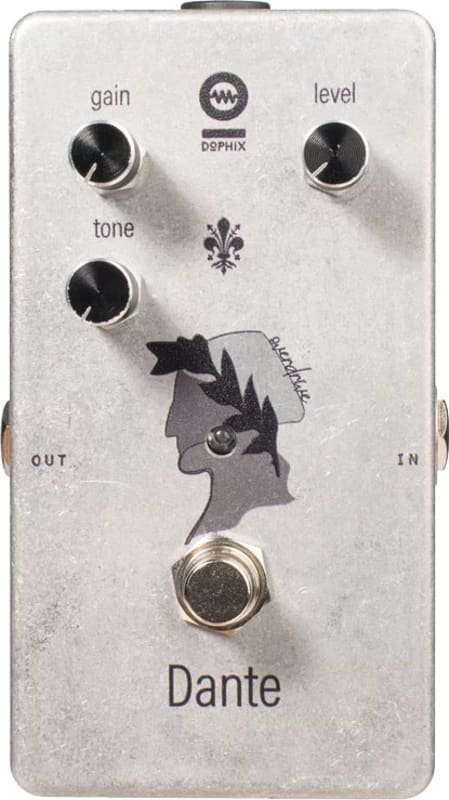

Very dynamic Overdrive with three controls: volume, tone and gain. The effect allows a complete sound selection: from clean to crunch up to a soft distortion. The sound produced is conferred with a typical character, thanks to a full level control and tone modulation.
Features
- 9 volts power supply DC through internal battery or external stabilized power supply. (Power Supply Not Included)
- Input/output Jack from 6.3 mm 1/4 “placed sideways to the pedal.
- TRUE BYPASS switch, carbon resistors and high quality components are one of the specific choices made standard for our pedals. These components are wanted in a product with electronic devices belonging to a vintage series, elements that distinguish a character and a warm and defined sound.
- Battery replacement is possible by removing the four screws on the bottom cover.
- Input impedance 1 Mohm, output 300 ohm.
- Current with LED on 19ma, standby 500 UA.
- Made in Italy
Specifications
Dimensions
1.57" H x 2.36" W x 4.33" D
EQ
Tone Control
Effects
Overdrive
Inputs
1 x 1/4"
MPN
DX-4
Outputs
1 x 1/4"
Power Source
9V DC power supply (not included)
Power Usage
19mA
Processing Type
Analog
UPC
0008053839781727
Weight
.62 lbs
