Dophix

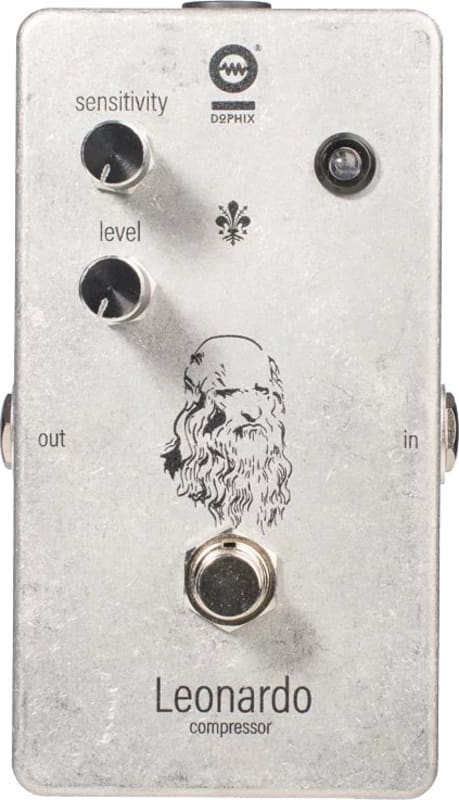

Leonardo Compressor Effects Pedal

$299.00

We Like Deals!


Da Vinci has fully embodied the spirit of the Renaissance. He was a painter, a draftsman, a sculptor, an architect and an engineer. It is like having enclosed in one single figure all the human knowledge. Not by chance the compressor of the Da Vinci experience is dedicated to Leonardo, with the will to indicate thatinside. The pedal were “tablets” all this knowledge. A singular effect arises , simple in its use but extremely sensitive in the setting and important in the chain effects.

Features

  • Compressor with 2 Controls “Output” and “Sensitivity”.
  • Compressor designed to achieve a controlled output level related to the selected sensitivity.
  • With the “Sensitivity” control you can choose the best dynamic compression range. The “Output” regulation let you adjustment the optimal output level.
  • Leonardo is also ideal for solo sustain.
  • Vintage component research with: integrated circuit and transistors of the series belonging to the production of the ‘70s stock.
  • Manual circuit design made with attention on the treatment of the signal audio paths. Mechanical robustness, guaranteed by board-mounted components.
  • TRUE BYPASS switch and high quality components is one of the specific choices made standard for our pedals.
  • The high-brightness LEDs ensure the visibility of the ignition status even under conditions of direct reflection on the pedal.
  • Input/output Jack from 6.3 mm 1/4 “placed sideways to the pedal.
  • Input impedance 1 Mohm, output 300 ohm.
  • Current with LED on 19ma, standby 500 UA.
  • Made in the USA

Specifications

Dimensions
1.57" H x 2.36" W x 4.33" D
Effects
Compressor
Inputs
1 x 1/4"
MPN
DX-6
Outputs
1 x 1/4"
Power Source
9V DC power supply (not included)
Power Usage
19mA
Processing Type
Analog
UPC
0008053839780096
Weight
.61 lbs
