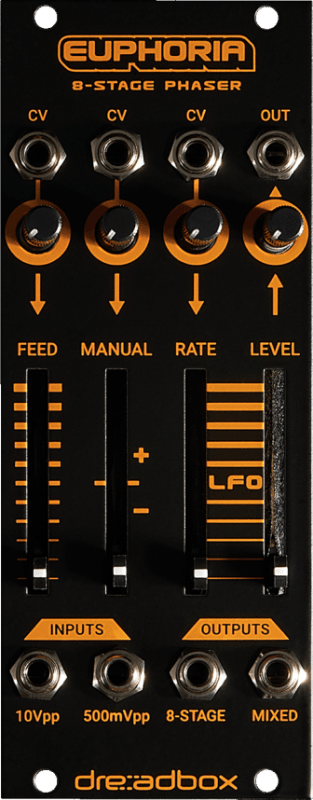

Add the rich, warm sounds of an analog phaser to your Eurorack system with Euphoria module from Dreadbox. This eight-stage phase shifter uses authentic OTA chips to create its distinctive and classic sound. The modulating triangle wave LFO has a wide frequency range from just about one minute all the way to up to audio rate and features CV input with attenuator. Create complex phase-shifted AM sounds using the internal LFO or external modulation sources. Add emphasis to the phase-shifted harmonics with the feedback and dedicated CV input. Euphoria accepts modular and line-level signals, providing an easy way to bring external instruments into your Eurorack setup. The timeless sound of analog phase shifting is now available as a Eurorack module from Dreadbox.

Features

10HP 8-stage analog phaser module
CV-controllable parameters — Feed, Manual (initial phase degrees), LFO Rate, and LFO Level
Dual outputs — fully wet and mixed
Current draw: 58mA @ +12V, 52mA @ -12V
Depth: 1.38"
Wide-ranging voltage controlled triangle wave LFO
Create phase-shifted AM sounds
Uses classic analog OTA chips
Accepts modular 10Vpp or line-level 500mVpp signals
Feedback with CV input for extra harmonic emphasis
Manual control over phase shifting
Eight-stage and mixed outputs
