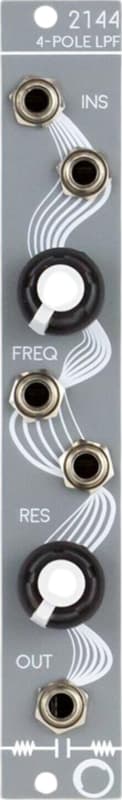

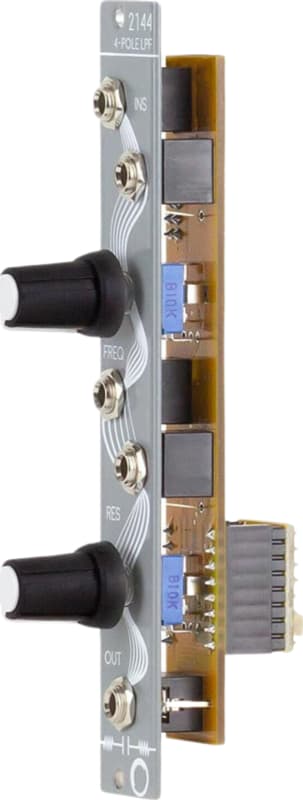

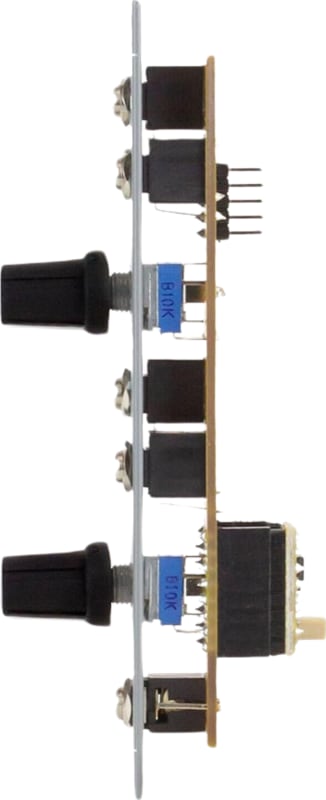

2144 4-Pole LPF Assembled Eurorack Synth Module
$119.00
We Like Deals!
The Electrosmith 2144 LPF is a flexible low pass filter with a 24dB slope. It uses Electrosmith's original 2144 submodule that is inpired by the famous SSM 2024 chips found in so many historical pieces of hardware, such as E-MU SP1200, Korg Mono/Poly, and PPG Wave. The filter outputs clean and warm tones at low resonance settings, however it can generate a fair amount of distortion when the resonance knob is up. The filter is capbale of self-oscilation, in which case it generates a pure sine wave and it tracks volts per octave.
Features
- Analog 4-pole low pass filter
- Renowned SSM-2044 filter topology
- CV over frequency and resonance
- Frequency CV tracks volt per octave
- Capable of self oscillation
- Doubles as sine wave VCO with V/Oct tracking
- urrent draw: 18mA @ +12v, 16mA @ -12v
- Depth: 1"
Specifications
HP Size
4HP
MPN
ES_2144_LPF_EU
Type
Synth Module
UPC
0000764283692184
