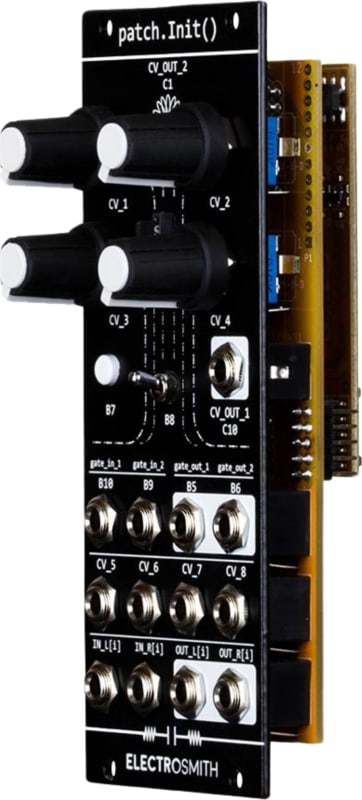

Daisy Patch.Init() Interface Eurorack Synth Module
$199.00
We Like Deals!
The patch.Init() is our exploratory modular interface for the Daisy Patch Submodule. Open-source both in hardware and firmware, the patch.Init() is the perfect jumping off point for your next modular DSP project. From ethereal reverbs, glitchy processors, comprehensive samplers, and complex oscillators, the patch.Init() can be any module you need it to be. Looking to create your own commercial module? Our front panel design is completely open-source (MIT). Just create your interface, add the Patch Submodule to the back, and you are off to the races with industry leading specs in an accessible, affordable package.
Features

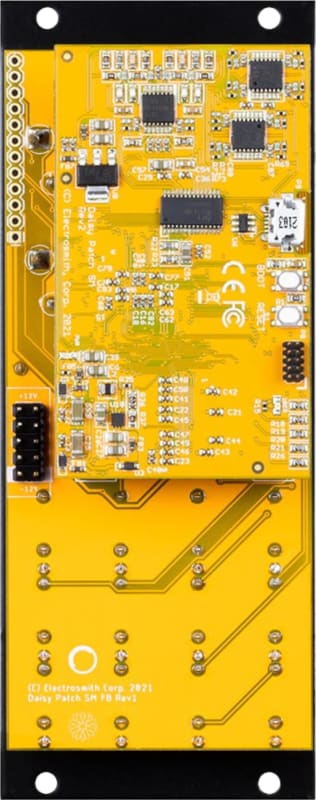

- Eurorack development platform for the Daisy Patch Submodule
- High Fidelity Daisy architecture: 24-bit, 96kHz sample-rate, 64MB SDRAM, STM32 H7 processor
- Stereo I/O

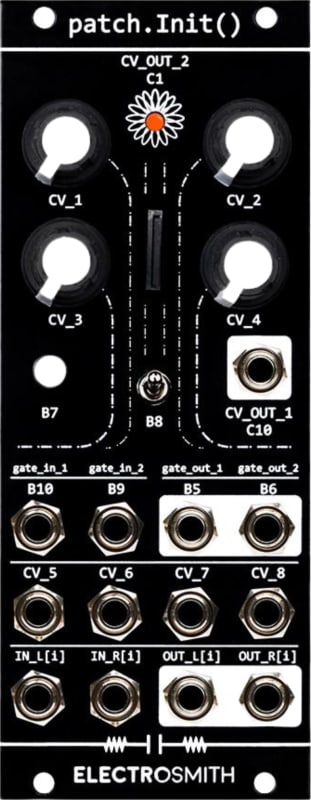

- Utilitarian design, with code-matching front panel parameter names

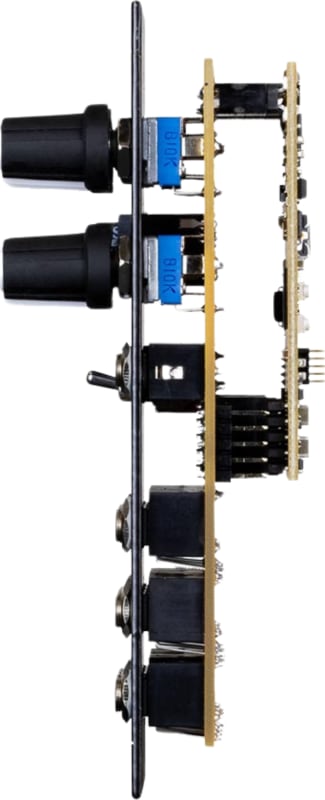

- Depth: 1.22"
- Power Consumption*: +12V=90mA, -12V=5mA, +5V=0mA
- Four potentiometers
- Four CV inputs
- One CV output
- Stereo audio I/O
- Two gate inputs and two gate outputs
- LED, push button, and toggle switch
Specifications
HP Size
10HP
MPN
ES_Daisy_P_Init
Type
Synth Module
UPC
0000764283692177
