Black DJ VCF LP/HP Filter Eurorack Synth Module
$209.00
We Like Deals!

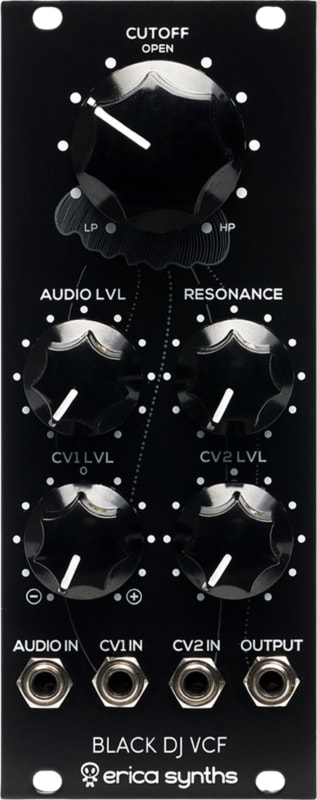

As its name suggests, the Erica Synths Black DJ VCF provides sound treatment functionality typically found on DJ decks – it is fully open when the cutoff knob is set to 12:00. When turned counter-clockwise, lowpass filtering is applied and when turned clockwise, highpass filtering is applied. The filter also has a nice-sounding resonance parameter. This module provides hands-on control over the sound during the performance, as well as unconventional timbre modulations that are hard to achieve with conventional state variable filters. The Black DJ VCF is a fully analogue design and consists of two VCFs – highpass and lowpass in series and the filter management is done by complex CV routing.
Features
- Fully analogue DJ-style VCF
- Manual resonance control
- Cuto ff CV attenuverter and attenuator
- Input and output
- Protection against undesired overvoltage
- Depth: 1.38"
- Power consumption: +55mA, -58mA
Specifications
HP Size
10HP
Inputs
1 x 1/8"
MPN
BLACK DJ VCF
Outputs
1 x 1/8"
Power Supply
Requires Eurorack case and power supply
Processing Type
Analog
Type
Synth Module
UPC
0000752275000075
