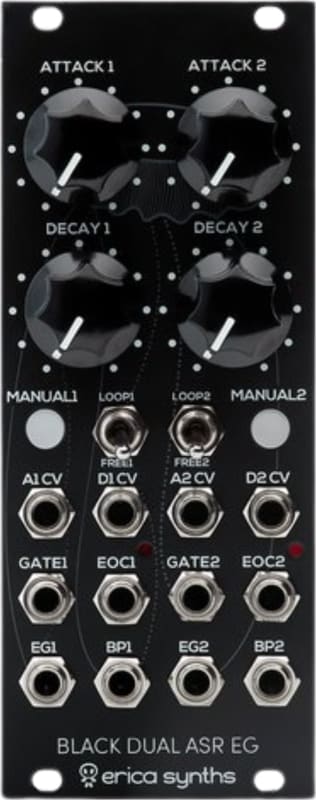

Black Dual ASR EG Looping AD/ASR Envelope Generator Eurorack Synth Module
$199.00
We Like Deals!
The Black Dual ASR EG is a versatile, full analogue looping AD/ASR envelope generator with voltage control over attack and release times, that can also be used as low frequency oscillator with manually and voltage controlled shape and rate. It has two identical parts, each featuring all typical envelope generator controls and bonus features – the end of the cycle output and bi-polar LFO output. When in loop mode the shortest attack and decay settings turn the module into voltage controlled drone oscillator with adjustable waveform (it will not track 1V/oct, though).
Features
- Dual voltage controlled envelope generator and LFO Manual and voltage control over Attack and Decay/Release Adjustable LFO shape
- Manual gate button
- Loop/Free running switch
- End of the cycle output
- A jumper for the EG/LFO time configuration
- Unipolar and Bipolar outputs
- Depth: 1.38"
- Current draw: 38mA @ +12V, 32mA @ -12V
Specifications
HP Size
10HP
MPN
Black Dual ASR EG
Power Supply
Requires Eurorack case and power supply
Type
Synth Module
UPC
0004751030828756
