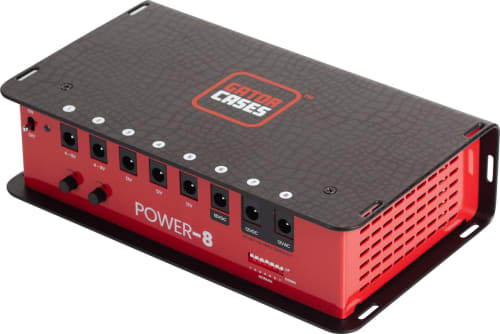

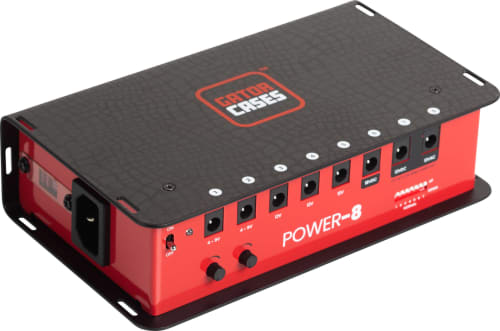

Gator GTR-PWR-8 Pedal Board Power Supply With 8 Isolated Outputs

$119.99

We Like Deals!

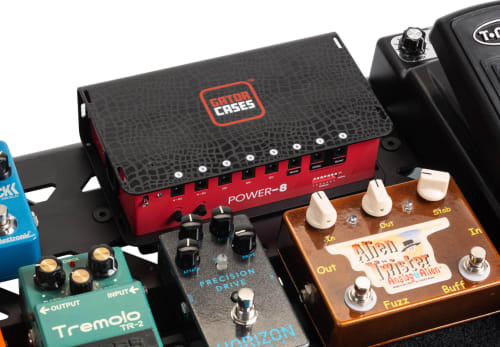

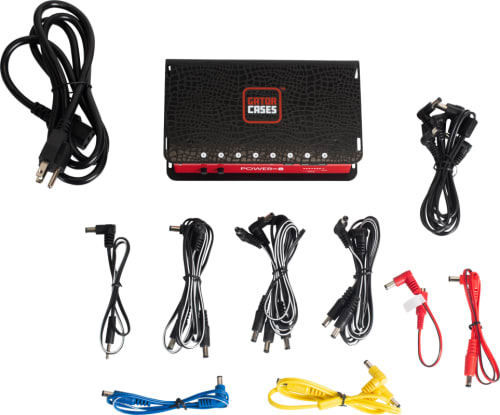

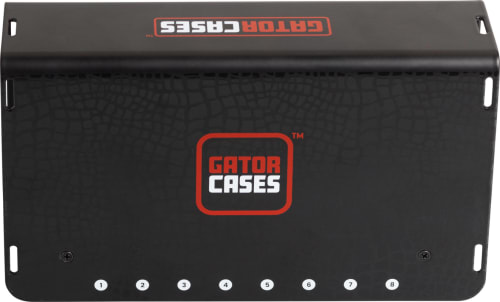

Power your pedalboard with the Gator Cases GTR-PWR-8. The pedal supplies eight isolated power outputs of various specifications, so you can power a wide array of pedal types. In fact, via controls found on the unit, you can adjust the voltage of certain outputs between 4 and 9 VDC. You can use this feature to choke fuzz pedals and other stompboxes that can exhibit interesting, dying-battery effects when underpowered. The GTR-PWR-8 is fashioned out of an all-metal enclosure with slotted vents for natural heat dissipation. Its integrated slots let you mount the unit directly to pedalboards. An indicator LED lets you know whether the PSU is on or off. It ships with all the cables you need, including a mains power cable, eight DC power cables, one AC power cable, a polarity inverter cable, a voltage doubler cable, a mini-jack cable, and a five-output DC power cable for daisy-chaining.

Features

  • 8-Outlet Pedalboard Power Supply
  • Isolated Power Outlets for Low-Noise Performance
  • AC Power Input with Switchable 115V/230V Operation

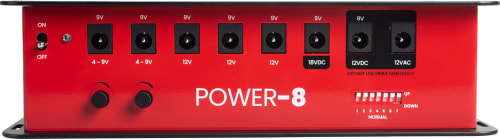

  • Adjust Voltage via DIP Switch/SAG Knobs
  • Daisy-Chain and Doubler Cables Included

Specifications

# of Outlets
8
Connectivity
2.1mm Barrel Connectors
Current Output
1600 mA
Dimensions
1.95" H x 7.3" W x 4.25" D
MPN
GTR-PWR-8
Outputs

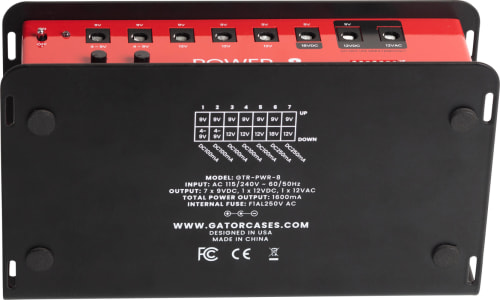

2 x 4-9V DC 120mA, 3 x 9/12V DC 120mA, 1 x 9/18V DC 250mA, 1 x 9/12V DC 250mA, 1 x 12V AC 500mA
Polarity
Center Negative
UPC
0000716408551531
Voltage Input
24V
