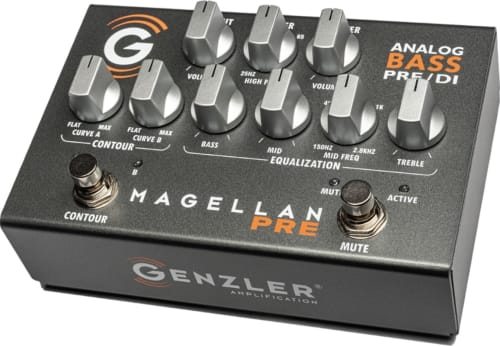

The MAGELLAN® PRE is an all-analog full featured preamp pedal with a wide-range input gain control, 3-band equalization with sweepable mids, Genzler's unique foot switchable dual curve adjustable contour circuits, foot switchable mute circuit, aux input, headphone output, balanced/unbalanced main output and balanced XLR direct output. This compact, lightweight pedal brings all of the tone and versatility of our MAGELLAN series bass amplifier designs into a small pedal format. The MG-PRE-PEDAL is also a great companion to Genzler's 4 ON THE FLOOR Classic Overdrive Pedal, CRASH BOX-4 Classic Distortion Pedal and RE/Q 5 band EQ + Filter Pedal.
Features
- Wide Range Input Circuitry
- Input and Master Volume Controls
- Variable High Pass Filter
- Switchable Dual Contours (A & B)
- Independent Contour Controls
- Same Magellan 3 Band EQ w/Sweepable Mids
- Signal mute
- Preamp Output—Capable of driving a Separate Power Amp
- Aux Input
- Headphone Output
- Studio Quality Direct Out Circuitry w/Pre or Post and GND Lift
- Lightweight Aluminum Chassis Construction
- Operates on any Power Supply Voltage: 9 – 18VDC, either Polarity (power supply not included)
Specifications
Dimensions
2.5" H x 6" W x 4.3" D
EQ
3-Band EQ
Effects
DI, Preamp, EQ
Inputs
2 x 1/4" (Instrument, Aux)
MPN
MG-PRE-PEDAL
Outputs
2 x 1/4" (Preamp Out, Headphone Out), 1 x XLR
Power Source
9-18V DC power supply (sold separately)
Power Usage
80mA
Processing Type
Analog
UPC
0000853974006437
Weight
1.1 lbs
