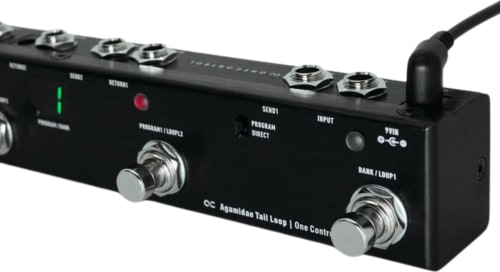

Agamidae Tail Loop Programmable Loop Switcher Effects Pedal

$249.00

We Like Deals!


The Agamidae Tail Loop is One Control's entry level programmable switching system for guitar effects. One Control wanted to make an incredibly compact programmable switcher with all the important features a musician needs. The Agamidae Tail features 6 loops, 100 presets (20 banks, 5 programs per bank) and six 9V DC outputs to power your effects pedals. You can also use Direct/Edit Mode to engage each effect loop individually for manual control of your pedalboard as inspiration strikes you. Recall Mode will bring up one of your 100 possible presets, and the Master Bypass function allows the player to bypass the switcher and all effects with the simple push of a button. All loops are true-bypass. Power the ATL with an industry standard 9V DC center-negative adapter. We recommend the One Control EPA-2000 model for low noise and reliability.

Features

  • Footswitches provide control over six independent loops
  • 100 Individually configurable presets (20 banks, 5 presets per bank)
  • 2 Selectable switching modes (Recall Mode, Direct/Edit Mode)
  • Master bypass function
  • 6x DC hollow plug outputs (2.1 x 5.5 mm) to loop through the power supply
  • True bypass
  • 6 footswitches (Bank/Loop 1, PGM 1/Loop 2, PGM 2/Loop 3, PGM 3/Loop 4, PGM 4/Loop 5, PGM 5/Loop 6)
  • Program / Direct selector switch
  • Status LEDs
  • Metal housing

Specifications

Dimensions
1.89" H x 14.57" W x 1.61" D
Effects
Utility & Signal Router
Inputs
1 x 1/4" (Input), 6 x 1/4" (FX Return)
MPN
OC-6V
Outputs
1 x 1/4" (Output), 6 x 1/4" (FX Send)
Power Source
9V DC power supply (not included)
Power Usage
150mA
Processing Type
Analog
UPC
0000818996012804
Weight
.97 lbs
