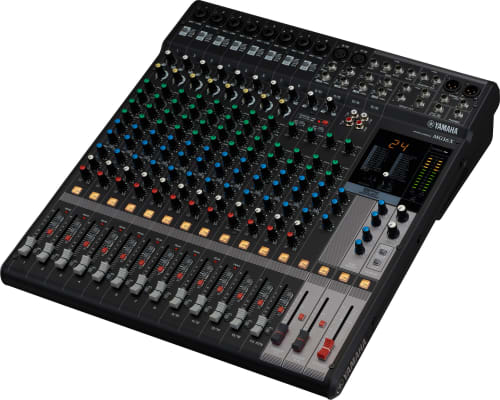

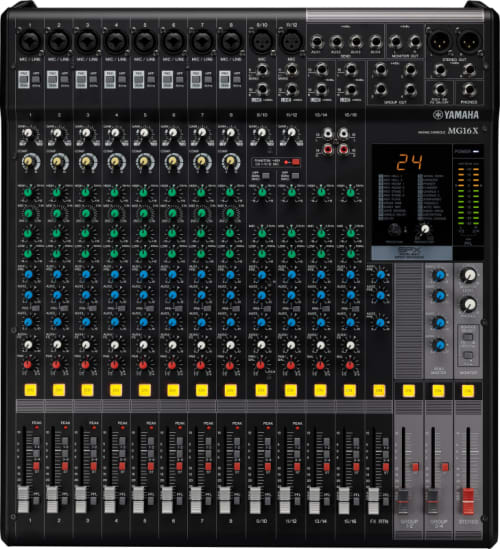

MG16X CV 16-Channel Analog Mixer w/ Effects
$594.99
We Like Deals!
Housed in a rugged steel chassis, the MG16X CV can accommodate up to 16 inputs and offers a balanced stereo output. Featuring D-Pre discrete Class-A microphone preamplifiers for pristine sound, it includes AUX busses for the built-in SPX effect with 24 presets and three more are available. Eight channels of single-knob compression are also included. The MG16X can accept XLR, 1/4" phone and RCA-type pin jack inputs, and offers XLR and phone outputs. The MG16X offers faders, and lit channel on/off switches for easy visual indication of settings.
Features
- Max. 10 Mic / 16 Line Inputs (8 mono + 4 stereo)
- “D-PRE” Mic Preamps with an Inverted Darlington Circuit
- High-Grade Effects: SPX with 24 Programs
- PAD Switch on Mono Inputs
- +48V Phantom Power
- Rack Mount Kit Included
Specifications
# of Channels
16
# of Mic Inputs
10
Aux Sends
4 x 1/4"
Busses/Groups
1 x Stereo, 4 x Groups
Dimensions
5.1" H x 17.5" W x 19.7" D
EQ
3-Band EQ
Features
Rackmountable, Phantom Power, With Effects
Inputs
8 x XLR-1/4" combo, 2 x XLR, 2 x Dual RCA Stereo
MPN
MG16X CV
Outputs
2 x XLR, 2 x 1/4", 2 x 1/4" (Monitor)
Power Source
Standard IEC AC cable
Processing Type
Analog
UPC
0000889025142670
