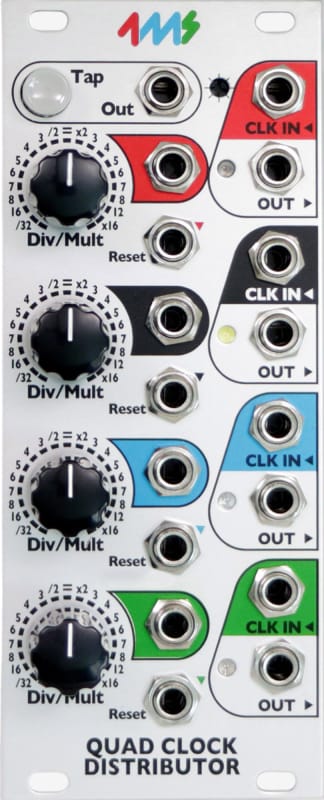

QCD Quad Clock Distributor V2 Eurorack Synth Module, Silver

Features

• Four CV-controlled Clock Divider/Multipliers
• Tap tempo button and five sync'ed clock outputs make the QCD perfect for head-of-the-chain "Master" clock module
• Tap clock output runs at the tapped tempo (even if other channels are being clocked externally)
• Create complex rhythmic patterns by patching multiple channels into each other's Div/Mult CV and Reset
• Each of the four channels has an independent clock IN, OUT, Reset and Div/Mult CV
• Reset jack (per channel) restarts the clock when a trigger is received (alters phase of clock)
• Clock input jacks are normalized downwards: Tap->Red->Black->Blue->Green
• Clock outputs stop automatically when incoming clock stops
• LEDs blink to output clocks' tempos
• 5V clock output pulses, fully buffered. Default is square-wave, and PW is controllable with expander
• Daisy chain multiple QCDs or other clock modules using Tap Out jack

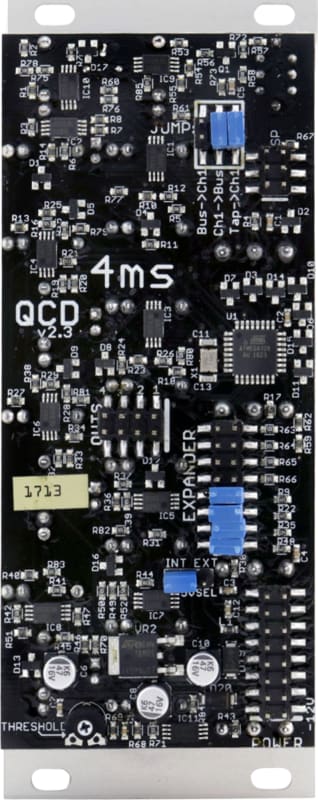

• Header on the PCB to connect to Quad Pingable LFO (QPLFO) to provide four CV Skew-able, CV Div/Mult-able envelopes
• Interfaces with QCD Expander for more features (Pulse Width, Inverted Gate, attenuverters for CV inputs)

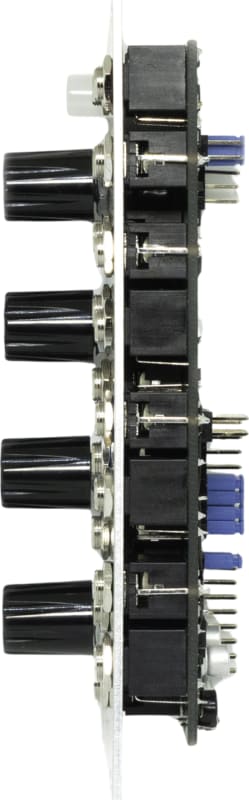

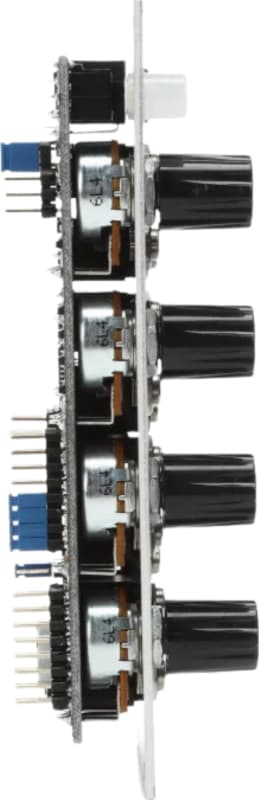

• Depth: 1.0"
• Power usage: ±12V DC 88mA, ±5V DC 41mA
