PDB4 4 Channel Passive DI
$115.99
We Like Deals!

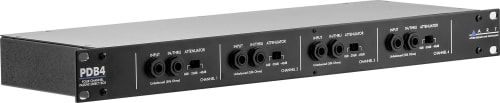

The PDB4 is a four channel passive direct box that features four quality fully transformer isolated direct boxes in a 1U 19-inch rack mount chassis. Inputs and outputs of each of the four channels are isolated to maximize channel separation. Transformer isolation on each output helps to eliminate system ground loops. It is a rock solid, roadworthy interface for connecting outputs of electronic musical instruments (or other audio sources) to the balanced inputs of mixer consoles and other balanced audio products. The PDB4 also allows connection of a music source to an instrument amplifier while simultaneously patching it to a mixer.
Features
- Four Fully Isolated Channels
- 50 kΩ Instrument/Line Input
- 600 Ω XLR Output Jack
- Switchable Ground Lift
- 0 dB, -20 dB, and -40 dB Attenuation Pad
- 50 kΩ Parallel Link Jack
- 10 to 50,000 Hz Frequency Response
- Connects 1/4" Sources to Mixing Console
- 1U 19" Rackmountable Chassis
Specifications
# of Channels
4
Active/Passive
Passive
Dimensions
1.75" H x 6" D x 19" L
Features
Rackmountable, Ground Lift
Inputs
4 x 1/4" TS Unbalanced, 4 x 1/4" TS Unbalanced Thru
MPN
PDB4
Outputs
4 x XLR 3-Pin Balanced
UPC
0000840402019756
dB Pad
-20 / -40 dB
