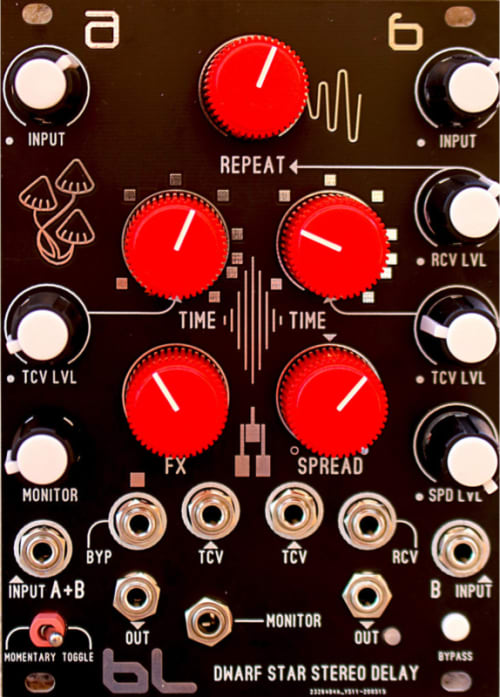

Dwarf Star MK2 Stereo Delay Module Eurorack Synth Module

Name: Dwarf Star MK2 Stereo Delay Module Eurorack Synth Module
Brand: Blue Lantern
SKU: BLULDWARFSTAR
Price: 185 USD
Availability: InStock

$185.00

Color: Black

We Like Deals!

All Blue Lantern

All Keyboards

All Synthesizers & Synth Modules

This product uses two PT2399 Echo FX IC's to generate stereo echo processing. This particular FX chip is known to have a degraded 'flavor' in sound, when the timing is set to longer values. This new version will also allow you to dial in self oscillating feedback using the top 'Repeat' knob and 'FX' level knob. There is also a headphone monitor jack with level control knob. The new Spread Parameter applies voltage to both delay circuits. But one voltage is inverted. This allows you to mess with both timings at the same time. There is also a level knob just for the spread parameter. Spread Knob is set too 12 o clock for 'off' position or zero volts. There is a new push button 'FX' parameter. You can use this feature in two modes: Momentary or Toggle. This parameter mutes the signal going into the Pt2399's input. So the delay trails do not get muted. This is good for live use.

Features

Width: 18hp
Current: 10mA, -6mA
Depth: 1.5 inches
Signal Levels for In/Outs: modular synth levels -5/+5
Individual Timing CV control of both channels
One input cv and single control for both 'repeating' circuits. This is basically the feedback path
Trigger input CV for Bypassing the Wet FX
