Carl Martin

Octaswitch MKIII Loop Switcher Effects Pedal

Name: Octaswitch MKIII Loop Switcher Effects Pedal
Brand: Carl Martin
SKU: CARLOCTASWITIII
Price: 429 USD
Availability: InStock

$429.00

Color: Red

We Like Deals!

All Carl Martin

All Instrument Signal Processors

All Effects Pedals

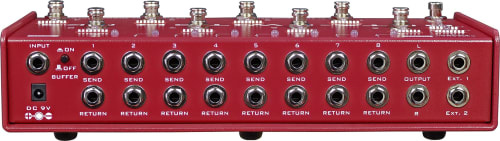

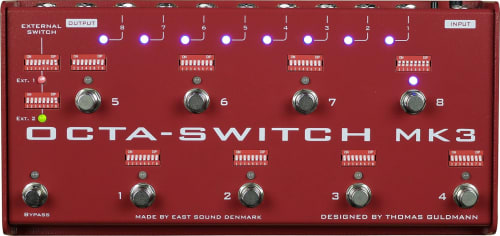

Ok, so you have eight effects pedals which you use regularly. You use various combinations of these pedals in various songs, but you are not good at tap dancing…or you are just clumsy and have (once or twice) stepped on the ultra tricked out-metalized-distortion pedal for the lead in your one ABBA cover. You have seen the digital effects controllers they use on the big stages, and have secretly yearned for one… even though you may never make the big stage. Enter Thomas Guldmann’s Octa-switch MK3. Your eight effects plug into the eight effects-loops on the back of this unit (all true-bypass, impedance free, gold relays so you can run any of your pedals, new and old without problem), and then by turning on or off the numbered switches in each of eight DIP Bank switches, you determine which effects you wish to use simultaneously in each Bank. There is a blue LED for every effects loop used and for each Bank (so once you are programmed, when you step on Bank 6 you will see the lights of all the effects you have assigned to Bank 6 and the Bank 6 LED). The Octa-switch MK3 has incorporated a couple new features as well! The ninth switch on the left side of the case is a BYPASS Switch….this allows you to completely bypass all eight pedals and enjoy only the unaffected sound of your amplifier. There are also two External Switching jacks which allow you to use two amplifiers and/or switch channels on those amps. Once you have all the Banks programmed, we recommend placing a piece of scotch or electrical tape over each DIP (….just to protect the switch from accidental switching, damage or floods….like beer). There is a buffered (or not….switchable) Mono input and a stereo Output, and the unit is powered by dual 9v batteries, or by a regulated power supply…like the PowerJack or the Pro Power (both by Carl Martin).

Features

The Octa-Switch MK3 has two external switching jacks for changing channels on your amp(s), or other operational features.
The Octa-Switch MK3 has nine switches, the eight are presets and the ninth is an effect Bypass, which will bypass the Octa-Switch MK3 to your un-affected amplifier sound.
The Octa-Switch MK3 has stereo outputs as well as the stereo return on Loop 8 (this is a stereo jack with tip-left and ring-right).
