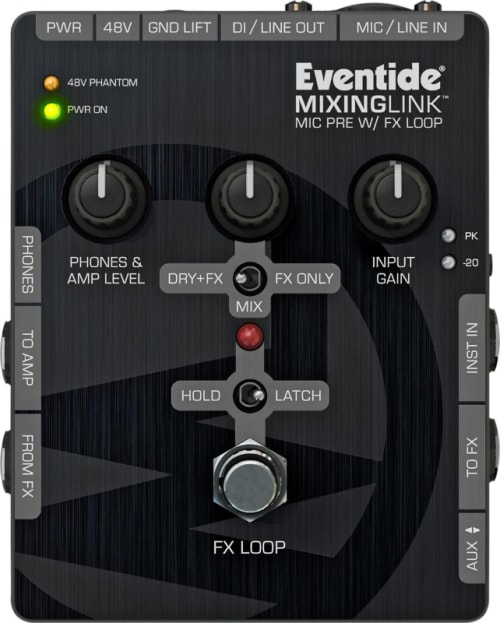

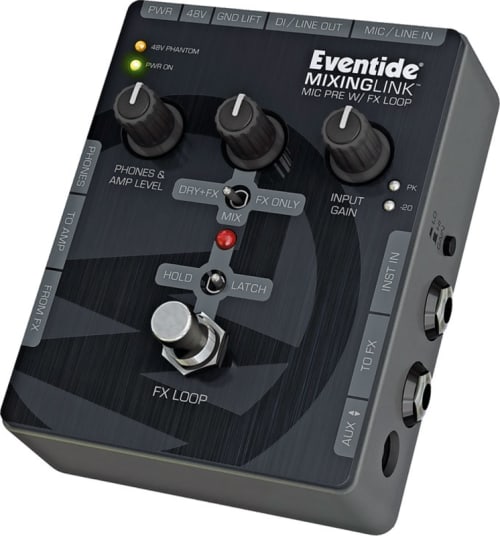

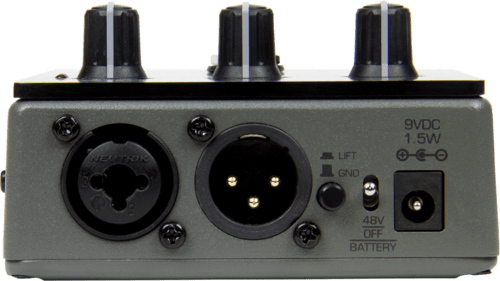

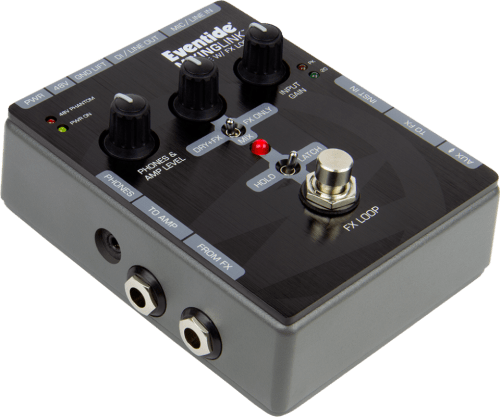

Mixing Link Mic Preamp w/FX Loop Effect Pedal
$349.00
We Like Deals!
A stompbox size audio toolkit that includes a quiet high gain mic-pre, 48V phantom power and enough I/O and control for applications such as FX Loop for microphone signal processing (vocals, horns, strings, etc), signal splitting and combining, complete re-amp setup, impedance and gain matching, mixing, hotel practice amp, a/b switch and more.
Features
- Latching or Momentary Footswitch Control of FX Loop for Performance Effects
- Works with a Wide Range of Microphones Including Condenser and Ribbon Mics with Up to 65dB of Clean Gain
- Aux I/O Connection Supporting Stereo Input and Send
- Guitar Amp Output and Headphone Monitor Output with Separate Master Volume Control
- Balanced XLR Output which Supports DI and Line Levels
- Instrument and Balanced Line Level Inputs
- Versatilemixcontrol Supports 3 Modes; 100% Dry w/FX Blended In, Mic/FX Balance Control, 100% FX (no Dry)
- Operates on 9V Battery (no phantom power when operating on a battery)
- 48V Phantom Power for Condenser Mics
- International Universal Power Supply Included
Specifications
# of Channels
1
Dimensions
3.6" H x 2.65" W x 1.5" D
Features
Power Supply Included, Battery-Powered
Inputs
1 x XLR (mic/line), 1 x 1/4" (Hi-Z), 1 x 1/4" (FX return), 1 x 1/8" (aux)
MPN
1183011
Outputs
1 x XLR (DI/line out), 1 x 1/4" (to amp), 1 x 1/4" (FX send), 1 x 1/8" (Headphones)
Power Source
9V DC Power Supply (included) / 9V Battery
UPC
0000840694001170
Weight
1lbs
