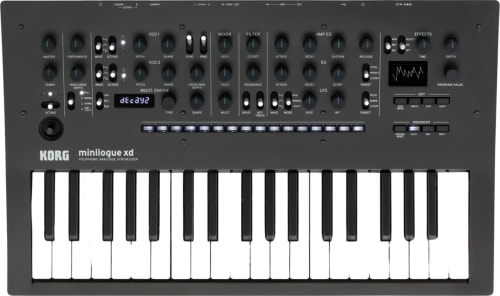

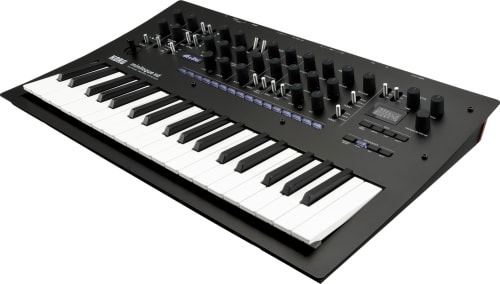

Minilogue XD 37-Key Polyphonic Analog Synthesizer

$679.99

We Like Deals!


An evolved next-generation analog synthesizer with huge potential for sound design and performance. Korg wanted to deliver a next-generation analog synthesizer for a new generation of musicians new to analog synthesis. That dream was realized in the development of the minilogue, which instantly made the analog synthesizer approachable. In addition to emphasizing the same real analog sound and joy of controlling an electronic musical instrument offered by the original minilogue, the minilogue xd newly adds a digital multi-engine, effects, a powered-up sequencer, and micro tuning functionality, further expanding the possibilities for sound design and performance potential. Minilogue xd is a fitting addition to the original groundbreaking minilogue. The minilogue xd features a customizable open environment. The unit comes with 16 user oscillator slots and 16 user effect slots that you can customize. Oscillators and user programs that you've created with the SDK (Software Development Kit) can be loaded into the minilogue xd via the dedicated librarian software. What sounds might arise from the fusion of the expanded digital oscillators with analog synthesis? Create original programs, share code, and participate in the user community. You can start with sample code provided by KORG.

Features

  • 37-key, 4-voice polyphonic analog/digital synthesizer
  • 3 oscillators per voice, 2 analog and 1 digital (FM/wavetable)
  • monologue filter design with drive circuit
  • 32-bit floating-point digital effects engine with modulation, delay, and reverb effects
  • 16 user slots for loading custom oscillators and effects
  • CV connectivity for modular synthesizers
  • Sync I/O for synchronizing with Volca modules, Electribe drum machines, and other Korg gear
  • Polyphonic step sequencer with 16 steps supports both step recording and real-time recording
  • Motion sequencer for recording the movements of up to 4 knobs
  • Micro tuning function features 23 preset tunings created by Aphex Twin and Dorian Concept
  • Oscilloscope and motion view display provides visual feedback of your sound design

Specifications

# of Keys
37
# of Pedal Inputs
1
# of Presets
200 factory, 300 user
Arpeggiator
4-voice with Latch mode
Controller
Joystick
Dimensions
3.35" H x 19.69" W x 11.81" D
Effects
Chorus, Delay, Flanger, Phaser, Reverb
Filter
Sharp Two-pole
Inputs
1 x 1/4" (Damper), 2 x 1/8" (CV in), 1 x 1/8" (Sync in)
Key Action
Synth
MIDI
In, Out, USB
MPN
MINILOGUEXD
Oscillator
2 x Analog VCO (sawtooth, triangle, square), 1 x Digital (noise, vpm, user)
Outputs
1 x 1/4" (Headphones), 1 x 1/8" (Sync out)
Pedal Input Type
Damper
Polyphony
4 Notes
Power Supply
9V DC power supply (included)
Processing Type
Hybrid
Sequencer
16-step Polyphonic Sequencer, Motion Sequence, Realtime Recording
Type
Synth Keyboard
UPC
0004959112187986
USB
1 x Type B
Waveform
Sawtooth, Triangle, Square
