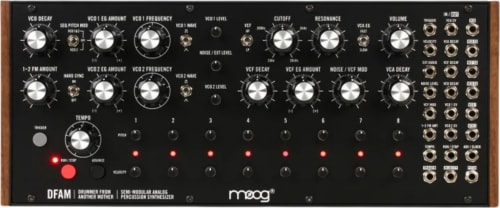

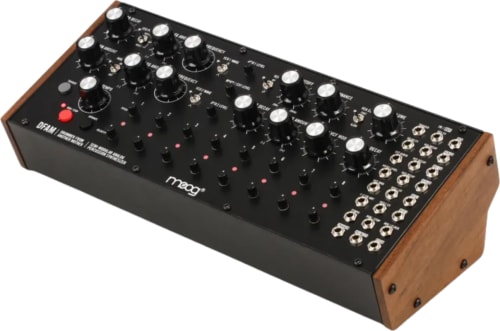

DFAM Semi-Modular Analog Desktop Drum Synthesizer

Features

• Analog Sequencer: 8-Steps With Pitch and Velocity Per-Step
• Sequencer Panel Controls: Tempo, Run/Stop, Trigger, Advance
• Sound Sources: 2 Oscillators With Square and Triangle Waveforms, 1 White Noise Generator, 1 External Audio Inputs
• Frequency Control: +/- 5 Octaves (10 Octave Range)
• Mixer: Level controls for Oscillator 1, Oscillator 2 and White Noise/External Audio Input
• Filter: 20Hz-20KHz Switchable Low Pass / High Pass 4-Pole Transistor Ladder Filter
• Envelopes: VCO EG w/ Voltage Controlled Decay and Bipolar Amount Control, VCF EG w/ Voltage Controlled Decay and Bipolar Amount Control, VCA EG w/ Voltage Controlled Decay and Selectable Fast/Slow Attack Time
• Patchbay Inputs: Trigger, VCA CV, Velocity, VCA Decay, External Audio, VCF Decay, Noise Level, VCO Decay, VCF Mod, VCO 1 CV, 1?2 FM Amount, VCO 2 CV, Tempo, Run/Stop, Advance/Clock.
• Patchbay Outputs: VCA, VCA EG, VCF EG, VCO EG, VCO 1, VCO 2, Trigger, Velocity, Pitch.

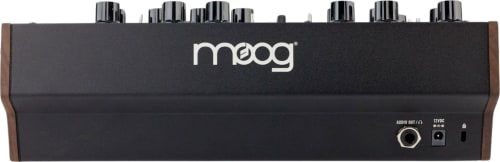

• Audio Output: TS Line / 1/4" TRS Headphones (Shared Output Jack)
• UPC: 040232613227
• Model Year: 2018
• Color: Black
• MIDI: No

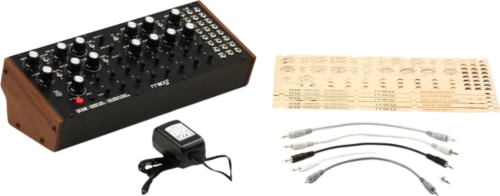

• Included Power Supply: 100-240VAC; 50-60Hz, +12VDC 1200mA
• Power Consumption: 3.0W
• Eurorack Current Draw: 230mA (+12V - from 10-pin header)
• Eurorack Mounting Dimensions: 60HP (1"/26mm Module Depth)
