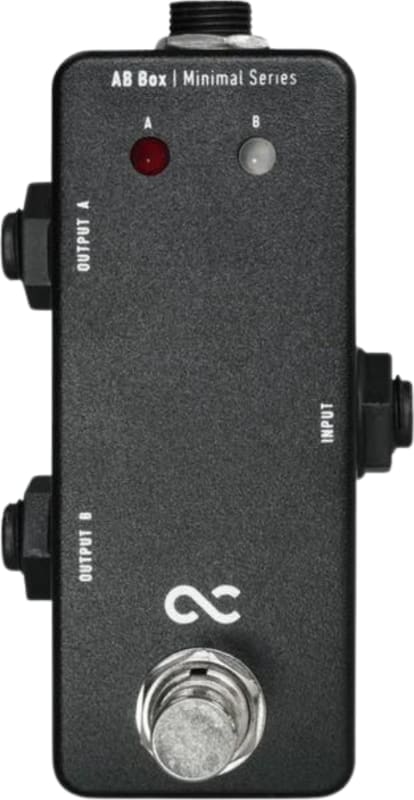

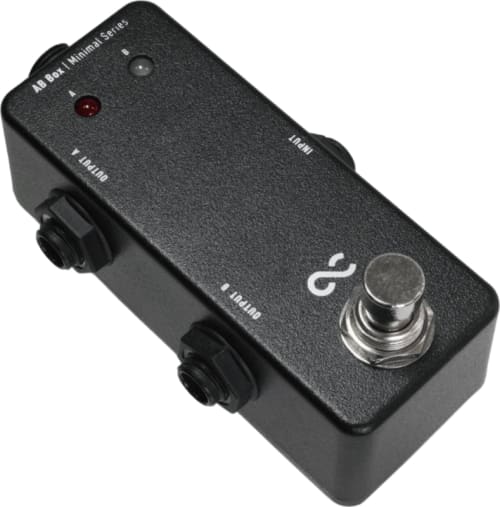

Use the Minimal AB Box to control the direction of your signal path in order to select amps, mute your signal, control what effects youd like to use, and various other uses. The AB Box has one input and two outputs. Plug your guitar into the input and then run out from the A and B outputs to your desired destination.The Minimal AB Box can also be used as an input selector. For example if you regularly switch guitars while playing live, plug two guitars into the two outputs and run from the input to your amp. That being said the inputs and outputs can be used in both directions.
Features
- Can also be used as an input selector
- Inputs and outputs can be used in both directions
- Can be used without a power supply however; the LEDs will not be active
- Use the Minimal AB Box as a Mute/Tuner switch
Specifications
Controls
Passive
Dimensions
1.89" H x 2.13" W x 3.98" D
Effects
Utility & Signal Router
Inputs
1 x 1/4"
MPN
OC-M-AB
Outputs
2 x 1/4"
Power Source
9V DC power supply (not included)
Power Usage
1mA
Processing Type
Analog
UPC
0000818996011548
Weight
.31 lbs
