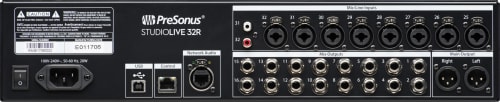

StudioLive 32R Series III 32-Channel Digital Mixer/Stage Box

$1999.99

We Like Deals!


The StudioLive® 32R digital mixer is four audio tools in two compact rackspaces. Use it as a standalone digital mixer with UC Surface remote mixing software. Pair it with your StudioLive Series III console mixer to use as a stage box or integrated monitor mixer. Connect it with EarMix 16M monitor mixers for the ultimate personal monitor system. Plug it into your studio computer, and you have a continuously bidirectional, 128-channel (64x64) USB audio interface with modeled vintage dynamics and EQ plug-ins on every input and bus. Whether used standalone or as part of a complete audio system, no other rackmount digital mixer is as flexible or as powerful. Inside the StudioLive 32R, the single-core PreSonus® FLEX DSP Engine powers 40 mixing channels, 22 mix buses, and 270 simultaneous processors, including 4 stereo effects and Fat Channel plug-in models on every input channel and mix bus. This is a true 32-channel digital mixer that can comfortably fit in any size rig. Simply connect it to a standard wireless router and control every mix parameter from your iPad®, Android™ tablet, or Windows® Touch computer using UC Surface. UC Surface was designed to make mixing on a touch screen as intuitive as mixing on faders. An integrated 128-channel (64x64) audio interface lets you record with digitally recallable analog preamps and a complete rack of vintage EQ and dynamics processors for every channel and bus. Modeled after classic analog studio designs, these compressor and EQ plug-ins load both natively on the StudioLive 32R and inside Studio One®, providing the ultimate mixing and recording flexibility.

Features

  • 34-Input, 32-Channel Digital Rackmount Mixer and AVB Stagebox for StudioLive Series III Consoles
  • Record and Play Back Up to 40 Channels via USB, or Up to 55 Channels via AVB Ethernet
  • Integrated Stereo SD Digital Recorder is Perfect for Instant Live Recordings
  • 32 Fully Recallable XMAX Preamps with Ultra-Low Noise Floor
  • 4 Internal Effects Buses with a Combination of Reverbs, Delays and Other Effects
  • Fat Channel Processing Provides Vintage EQ and Compression Options for Each Channel
  • Advanced Scene Management Helps You Manage Complex Mixing Tasks More Efficiently
  • 16 Flex Mixes Can be Used as Aux Mixes, Subgroups, or Matrix Mixes
  • Bundled Software Includes a 12-Month Subscription to the Studio One+ Suite and a Perpetual Studio One Professional Edition License

Specifications

# of Channels
32
# of Mic Inputs
32
A/D Resolution
24-bit/48kHz
Busses/Groups
26 Mix Buses: 16 FlexMixes (Aux, Subgroup, Matrix), 4 Dedicated FLEX FX Buses, and Stereo Main Bus
Computer Connectivity
Ethernet, USB
Dimensions
3.5" H x 12" D x 19" W
EQ
4-Band EQ, 6-Band EQ
Features
USB
Inputs
32 x XLR-1/4" Combo (mic/line), 1 x Dual RCA Stereo
MPN
2779200203
Outputs
2 x XLR, 16 x 1/4" (mix out), 1 x 1/4" TRS Headphones
Power Supply
Standard IEC Cable
Receiver Data I/O
1 x EtherCon (AVB), 1 x RJ-45 (network control)
Storage Format
SD, USB
UPC
0000673454005916
USB
1 x USB-B
Weight
11.2lbs
