JDI Duplex Mk4 Stereo DI Passive Direct Box

Name: JDI Duplex Mk4 Stereo DI Passive Direct Box
Brand: Radial
SKU: RADIR8001020
Price: 459.99 USD
Availability: InStock

$459.99

We Like Deals!

All Radial

All Live Sound

All Live Sound Accessories

All Direct Boxes

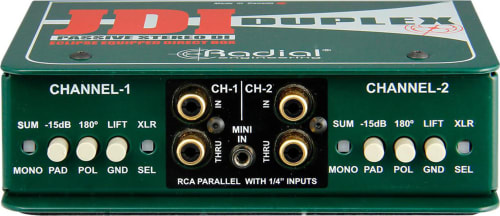

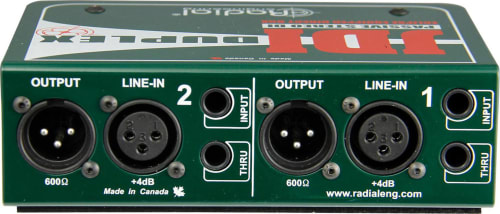

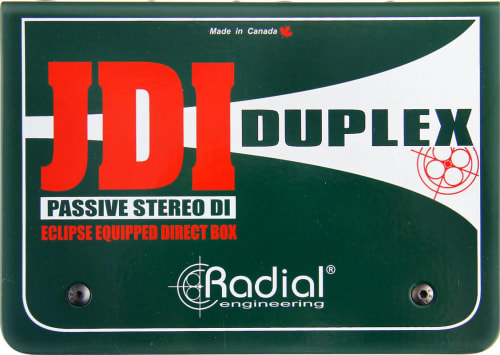

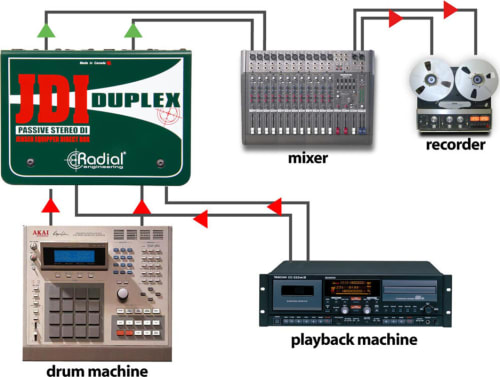

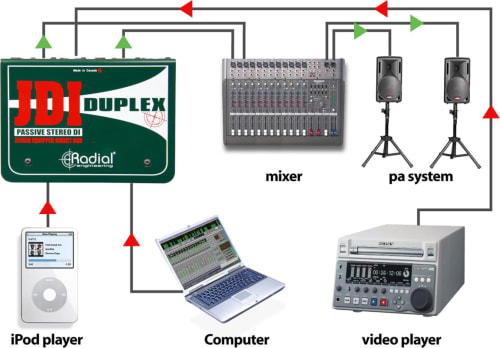

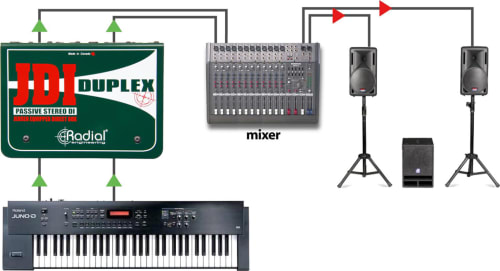

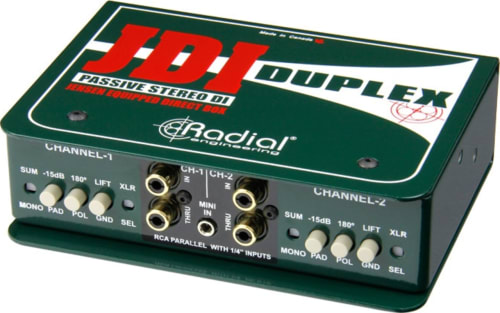

The JDI Duplex is a high performance 2-channel passive direct box designed for enhanced connectivity for any application, with numerous input connector types and premium Jensen transformers for exceptional audio performance. The JDI Duplex takes the exceptional transparency and wide bandwidth of the JDI Stereo passive direct box, and adds numerous connector types and line-level inputs to provide the audio technician with the ability to interface with any stereo sound source. Designed to handle extreme signal levels without distortion, it utilizes two world-class Jensen JT-DB-EPC audio transformers to deliver a smooth, warm sounding Bessel curve - reminiscent of the finest vintage gear. Ruler flat from 10Hz to 40kHz and with virtually zero phase deviation, the JDI Duplex delivers the natural, pure sound of the instrument without artifact. The inputs can be accessed via 1/4", RCA, 3.5mm TRS, or XLR line-level connectors, making it easy to plug in any sound source, from stereo instruments to consumer playback equipment, or professional +4dB line-level audio equipment.

Features

Built-In Jensen JT-DB-PEC Transformers
Pad, Polarization, Ground-Lift Switches
Mono Sum Turns the Input & Thru Jacks into a Passive Mixer to Sum Stereo Signals to Mono
-15dB Pad Reduces the Input Sensitivity to Allow High Output Signals from Keyboards to be Connected Without Distortion
180Deg Reverses Pin-2 and Pin-3 on the XLR Output to Help Phase Align the Stage Sound with the PA System
Ground Lift Lifts the Audio Ground(Pin-1 on the XLR Output) to Help Reduce Hum and Buzz Caused by Ground Loops
3.5mm Mini TRS Input Provides Easy Interface for Laptops, Tablets, Smart Phones and iPods
