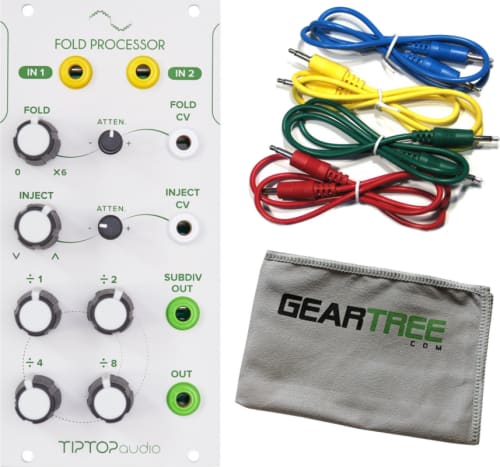

Fold Processor Wave Folder/Multiplier Eurorack Synth Module w/ Cleaning Cloth and 4 Cables

Name: Fold Processor Wave Folder/Multiplier Eurorack Synth Module w/ Cleaning Cloth and 4 Cables
Brand: Tiptop Audio
SKU: XTIPTFOLD
Price: 155 USD
Availability: InStock

$155.00

We Like Deals!

Oversized item: Additional charge for expedited shipping.

All Tiptop Audio

All Keyboards

All Synthesizers & Synth Modules

The Fold Processor is a voltage controlled wave multiplier and sub-octave generator. The circuit is based on a classic diode design that adds odd harmonics by folding the incoming signal, followed by subdivided square waves.The wave folder creates new waveforms from the standard sine, triangle, sawtooth and square waves, has a dedicated output jack and CV input with an attenuator making it very easy to create beautifully animated folding sounds. Adjustable voltage controlled Inject alters the bias point creating an even wider palette of sounds.The subdivide generator squares the fold output generating 4 more sounds spaced one octave apart, each with its own gain knob and mixed to the Subdivide output jack. Mixing the four can create anything from discordant square wave swarms to sweet harmonic oscillator stacks, from a stable square version of the folded wave to freaky PLL like glitched slides.Overall results can sound evil at times and sweet at others, a true multi-faced devil.

Features

Size: 12HP
Depth: 42mm
Power: +12V 60ma / -12V 55ma
1 x Tiptop Audio Fold Processor Wave Folder/Multiplier Eurorack Synth Module
1 x YELLOW Ad Infinitum 12" Eurorack Modular Synth 3.5mm Mono TS Patch Cable 1/8"
1 x RED Ad Infinitum 12" Eurorack Modular Synth 3.5mm Mono TS Patch Cable 1/8"
1 x GREEN Ad Infinitum 12" Eurorack Modular Synth 3.5mm Mono TS Patch Cable 1/8"
1 x BLUE Ad Infinitum 12" Eurorack Modular Synth 3.5mm Mono TS Patch Cable 1/8"
UPC: 607595975388
