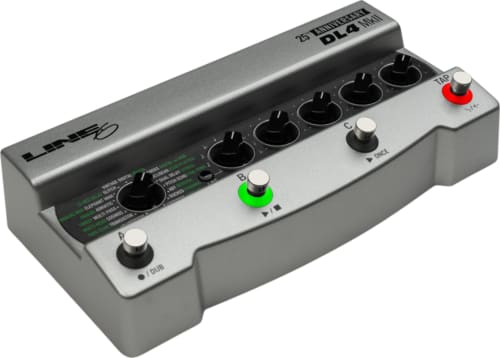

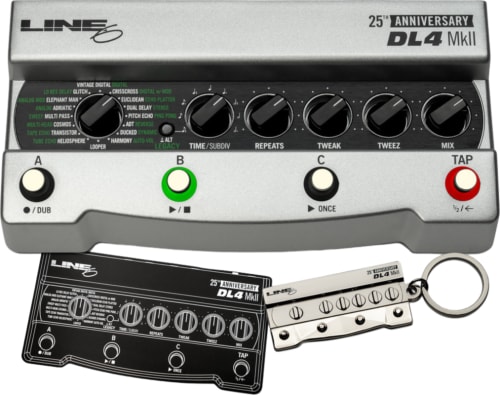

DL4 MKII Delay Effects Pedal

Features

• Constructed from cast aluminum to withstand the rigors of performance
• 30 delays total: 15 new MkII delays drawn from the HX family of amp and effects processors, 14 original DL4 delays, and Echo Platter, taken from the rackmount Echo Pro
• Onboard memory provides up to 240 seconds of recording time, expandable to several hours using an optional microSD card, which also enables a loop to be stored in memory

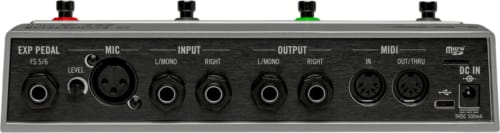

• MIDI In and Out/Thru DIN connectors enable the DL4 MkII to receive continuous controller, program change, and other MIDI messages from external sources
• The footswitches select presets A, B, and C. When the Looper is active, they select the Record/Overdub, Play/Stop, and Play Once functions
• Connect up to two assignable external footswitches, an expression pedal, or one of each

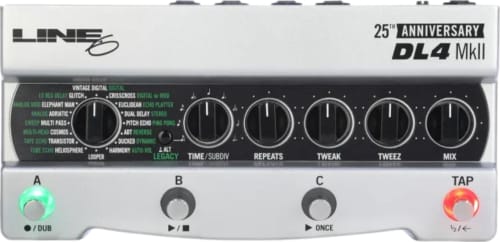

• Utilizes the same layout of knobs and footswitches as the original. Pressing the Legacy button converts DL4 MkII into a DL4
• The 4-Switch Classic Looper and the 1-Switch Looper operate in either mono or stereo and may be positioned before or after other effects
• Connect a dynamic microphone to the XLR input for vocal (or acoustic instrument) processing and looping, and adjust the gain using the Trim control
• Bypass options include buffered, DSP, and true bypass. Buffered bypass and true bypass avoid A/D/A conversion by routing analog signals directly from the input(s) to the output(s)
• Connect an optional expression pedal (automatically assigned to relevent effects parameters), two assignable external footswitches, or one of each
• DC power is provided by the included 9V DC-1g power supply or via most other 9V center-negative power supplies
